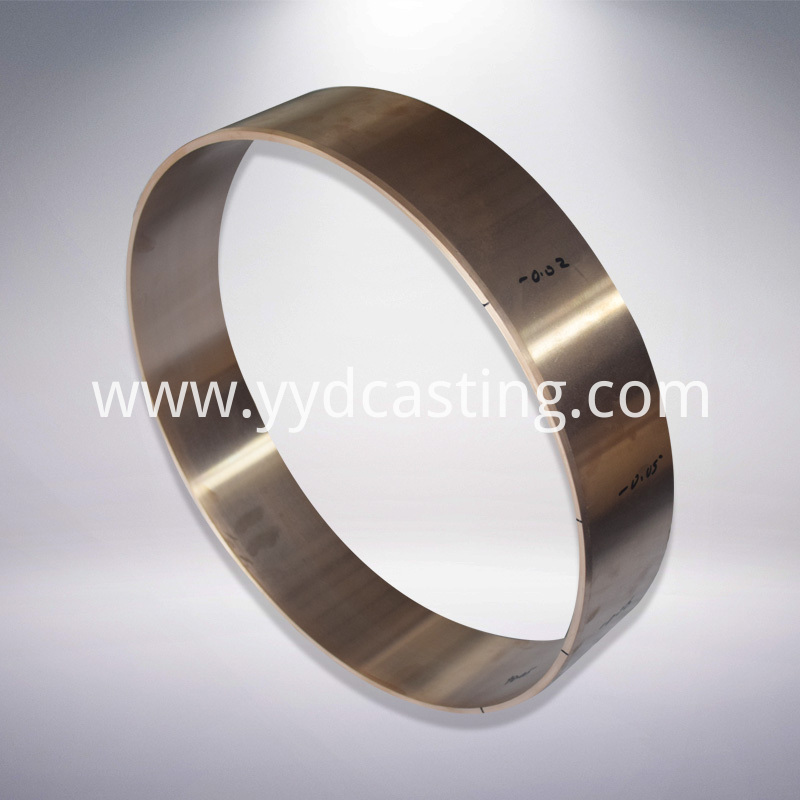

Upper Head Bush HP400

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 30 Days

Basic Info

Model No.: HP200 HP300 HP400 HP500 HP800

Model:: HP

Material:: High Lead Bronze

Outside Diameter:: 610 (Unit:mm)

Inner Diameter:: 562 (Unit:mm)

Applicable Machinery:: HP Cone Crusher

Certification:: ISO9001:2008

Processing Type:: Centrifugal And Sand Casting

Supply Ability:: 35 Ton Per Month

Additional Info

Transportation: Ocean,Air

Place of Origin: Shenyang

Supply Ability: 35 Tons Per Month

Certificate: BV/ISO9001:2008

HS Code: 84749000

Port: DaLian Seaport,ShenYang Airport

Product Description

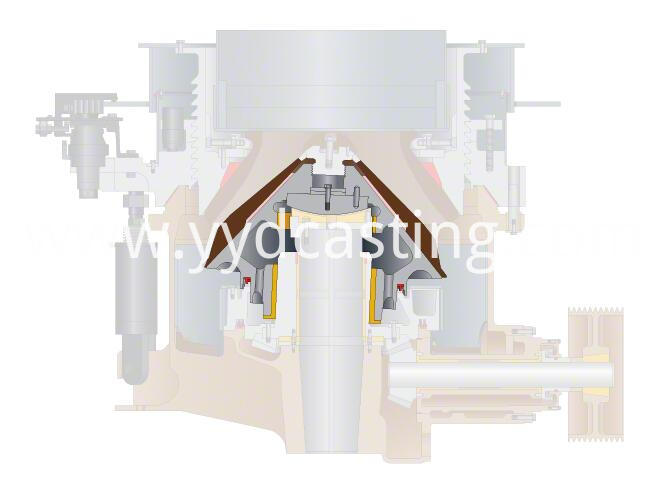

In the working process of cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone swings under the force of the eccentric sleeve. The section of the moving cone near the static cone becomes the crushing chamber, and the material is crushed by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone leaves this section, the material that has broken to the required size falls under its own gravity and is discharged from the bottom of the cone. In order to reduce the wear between the Eccentric Bushing and the shaft, bushing is usually set between them. However, the existing bushing is only a cylindrical bushing. Because of the lack of lubricant between bushing and eccentric bushing and shaft, it is easy to wear and damage bushing. Its frequent replacement greatly affects the production efficiency.ronze. Upper Head Bushing


Hp Xs FullUpper Head BushingUpper head bushingUpper Head Bushing


Specifications

High level surface finish

No burrs and sharp edges
Maximum tin content makes our bushings stronger and long lasting
OEM is available by your drawings, we promise to strictly make it as your request
Precise dimension and processing make sure the part is perfect in every way
Our crusher parts are packed in non-fumigation plywood.
ISO9001 Quality Control, good raw material.

100% testing before its delivery.

Produced as drawings and requirement strictly.

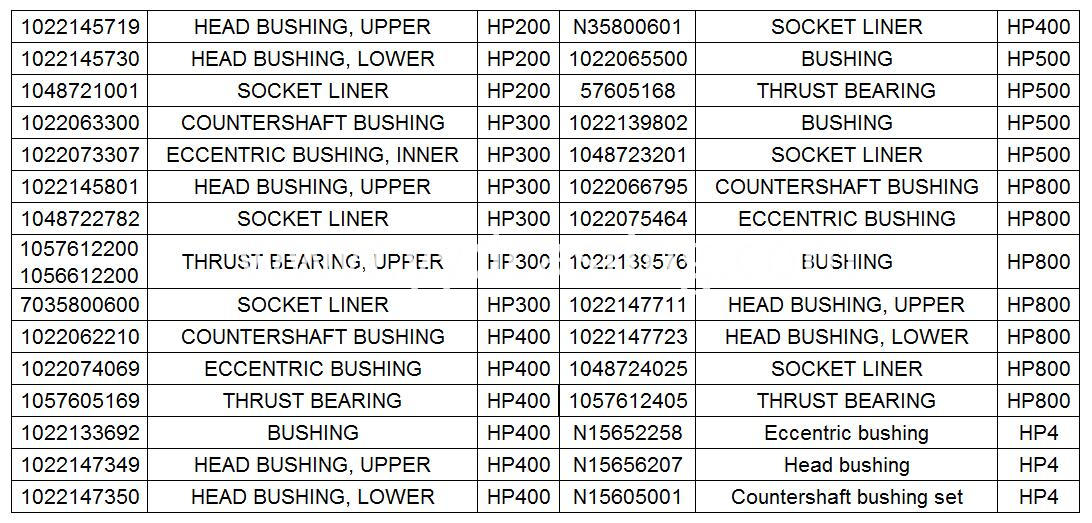

catalogue of HP

Shenyang YYD casting Co., Ltd. is located at Shenyang Industrial City, in the North eastern of China. Our company is a professional manufacturer of brass and bronze products in China.We specialize bushing in Tin-copper bronze, Aluminum-copper bronze, Zinc-copper bronze, Manganese-copper bronze.

Our company has constantly imported advanced equipment, and persisted in high quality. Therefore, we can provide better services to related manufacturing industry, and pursue ceaseless improvement. We adhere to the operation concept of "quality, reputation, efficiency and return" and persistently stick to our idea of continual operation.

Our company has passed the evaluation of ISO9001:2008 quality certification. Thanks to our excellent production equipment, strong technology supports, fine inspection measures, and our center lab inspection (including material texture test and analysis, test for intensity and hardness), our products sell well in more than 20 provinces and cities in domestic market, and are exported to more than 10 countries and regions, such as Russia, America, Germany, Malaysia, Australia, South Africa and Italy.

Please feel free to contact us for further information.

FAQ
1.Q: What products do you offer?
A: Shenyang YYD Casting provides parts are tailored with your requirements. It ranges mainly from METSO crusher parts, especially HP series, totally replacement parts, we also welcome OEM offer from you.
2. Q: What materials can you make?
A: Tin-copper bronze, Aluminum-copper bronze, Zinc-copper bronze, Manganese-copper bronze and other material according to customer provided.

3. Q: How about the capacity? What is the max dimension?

A: The capacity is 30 tons per month. The max dimension we have casted is 5meter.
4. Q: What information should we provide to you to confirm our order of parts?
A: For standard part, you only need to provide the part number than we will define the part. But others, you should provide the technical drawings of your parts.
5. Q: What's the after-sales service if your product has quality problem?
A: First of all, you should provide us photos of the problem part and machine then our engineers will collect the necessary information to find the root cause. If it's indeed a quality problem of the product itself, we must afford compensation to you and also figure out solutions to avoid the same problem. However if it's caused by client's misconduct, we also provide the technical suggestions for our clients to solve problem better.
6. Q: Can we visit your factory?
A: Yes, of course, welcome to our factory in workday and our sales team will show you everything you want to know.
